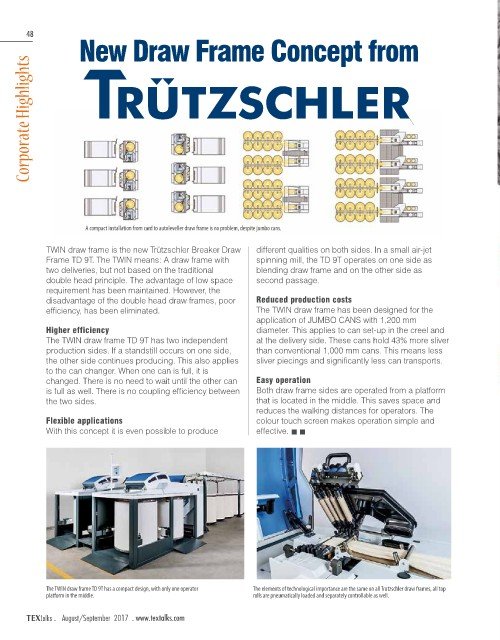

New Draw Frame Concept from

A compact installation from card to autoleveller draw frame is no problem, despite jumbo cans.

TWIN draw frame is the new Trützschler Breaker Draw different qualities on both sides. In a small air-jet
Frame TD 9T. The TWIN means: A draw frame with spinning mill, the TD 9T operates on one side as
two deliveries, but not based on the traditional blending draw frame and on the other side as
double head principle. The advantage of low space second passage.
requirement has been maintained. However, the
disadvantage of the double head draw frames, poor Reduced production costs
efficiency, has been eliminated. The TWIN draw frame has been designed for the
application of JUMBO CANS with 1,200 mm
Higher efficiency diameter. This applies to can set-up in the creel and
The TWIN draw frame TD 9T has two independent at the delivery side. These cans hold 43% more sliver
production sides. If a standstill occurs on one side, than conventional 1,000 mm cans. This means less
the other side continues producing. This also applies sliver piecings and significantly less can transports.
to the can changer. When one can is full, it is
changed. There is no need to wait until the other can Easy operation
is full as well. There is no coupling efficiency between Both draw frame sides are operated from a platform
the two sides. that is located in the middle. This saves space and
reduces the walking distances for operators. The
Flexible applications colour touch screen makes operation simple and
With this concept it is even possible to produce effective.

The TWIN draw frame TD 9T has a compact design, with only one operator The elements of technological importance are the same on all Trutzschler draw frames, all top
platform in the middle. rolls are pneumatically loaded and separately controllable as well.
