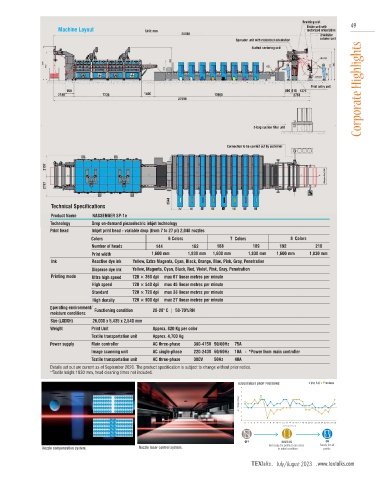

Page 49 - TEXtalks. July- August 2023

Brushing unit
Brake unit with 49
Machine Layout Unit: mm motorized orientation
28396 Unwinder
column unit
Spreader unit with motorized orientation
Slatted centering unit
Max 600
3480
2148
1300
Min 300
Print entry unit
950 800 618 1375
2180 7236 1400 13985 2793
27596

3-bag suction filter unit

Connection to be carried out by customer

2157
Effective W=1800

2157

3544
Technical Specifications
Product Name NASSENGER SP-1e
Technology Drop on-demand piezoelectric inkjet technology
Print head Inkjet print head - variable drop (from 7 to 27 pl) 2,048 nozzles
Colors 6 Colors 7 Colors 8 Colors
Number of heads 144 162 168 189 192 216
Print width 1,600 mm 1,830 mm 1,600 mm 1,830 mm 1,600 mm 1,830 mm
Ink Reactive dye ink Yellow, Extra Magenta, Cyan, Black, Orange, Blue, Pink, Gray, Penetration
Disperse dye ink Yellow, Magenta, Cyan, Black, Red, Violet, Pink, Gray, Penetration

Printing mode Ultra high speed 720 × 360 dpi max 67 linear metres per minute
High speed 720 × 540 dpi max 45 linear metres per minute
Standard 720 × 720 dpi max 33 linear metres per minute
High density 720 × 900 dpi max 27 linear metres per minute
Operating environment/ Functioning condition 20-28° C | 50-70%RH
moisture conditions
Size (LXDXH) 26,000 x 5,435 x 2,540 mm
Weight Print Unit Approx. 820 Kg per color
Textile transportation unit Approx. 4,700 Kg
Power supply Main controller AC three-phase 380-415V 50/60Hz 75A
Image scanning unit AC single-phase 220-240V 50/60Hz 10A - *Power from main controller
Textile transportation unit AC three-phase 380V 50Hz 40A
Details set out are current as of September 2020. The product specification is subject to change without prior notice.
** Textile height 1830 mm, head cleaning times not included.
ADJUSTMENT DROP POSITIONS Ver 5.0 Previous

OFF BOOTING ON
Not ready for profile to all colors Ready for all
Nozzle compensation system. Nozzle laser control system. or initial condition profile
