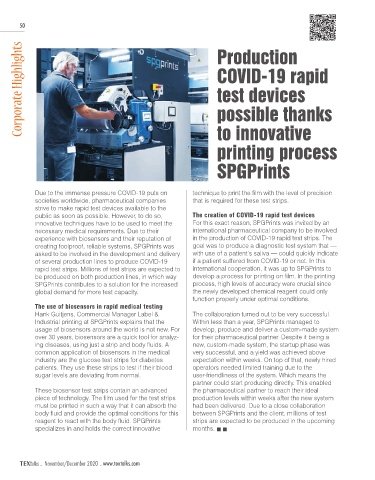

Production

COVID-19 rapid

test devices

possible thanks

to innovative

printing process

SPGPrints

Due to the immense pressure COVID-19 puts on technique to print the film with the level of precision
societies worldwide, pharmaceutical companies that is required for these test strips.
strive to make rapid test devices available to the
public as soon as possible. However, to do so, The creation of COVID-19 rapid test devices
innovative techniques have to be used to meet the For this exact reason, SPGPrints was invited by an
necessary medical requirements. Due to their international pharmaceutical company to be involved
experience with biosensors and their reputation of in the production of COVID-19 rapid test strips. The
creating foolproof, reliable systems, SPGPrints was goal was to produce a diagnostic test system that —
asked to be involved in the development and delivery with use of a patient’s saliva — could quickly indicate
of several production lines to produce COVID-19 if a patient suffered from COVID-19 or not. In this
rapid test strips. Millions of test strips are expected to international cooperation, it was up to SPGPrints to
be produced on both production lines, in which way develop a process for printing on film. In the printing
SPGPrints contributes to a solution for the increased process, high levels of accuracy were crucial since
global demand for more test capacity. the newly developed chemical reagent could only
function properly under optimal conditions.
The use of biosensors in rapid medical testing
Hank Guitjens, Commercial Manager Label & The collaboration turned out to be very successful.
Industrial printing at SPGPrints explains that the Within less than a year, SPGPrints managed to
usage of biosensors around the world is not new. For develop, produce and deliver a custom-made system
over 30 years, biosensors are a quick tool for analyz- for their pharmaceutical partner. Despite it being a
ing diseases, using just a strip and body fluids. A new, custom-made system, the startup phase was
common application of biosensors in the medical very successful, and a yield was achieved above
industry are the glucose test strips for diabetes expectation within weeks. On top of that, newly hired
patients. They use these strips to test if their blood operators needed limited training due to the
sugar levels are deviating from normal. user-friendliness of the system. Which means the
partner could start producing directly. This enabled
These biosensor test strips contain an advanced the pharmaceutical partner to reach their ideal
piece of technology. The film used for the test strips production levels within weeks after the new system
must be printed in such a way that it can absorb the had been delivered. Due to a close collaboration
body fluid and provide the optimal conditions for this between SPGPrints and the client, millions of test
reagent to react with the body fluid. SPGPrints strips are expected to be produced in the upcoming
specializes in and holds the correct innovative months.
